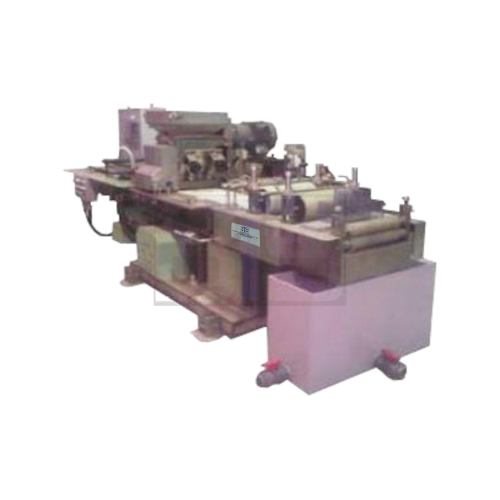

Auto. plate pasting machine
Home
Products
Plate manufacturing
Auto. plate pasting machine
Inquiry
Prev
Next
Product description
Functions
Lead alloy plate pasting.
Product features
Controlled by inverter and Mitsubishi PLC system.
Vacuum type material feeding structure
The driving system of the main machine uses a double-motor driving type (one set is used to drive the belt, the other to drive the lead oxide paste feeding hopper).
Pasting speed: 100-135 pcs of grid panels (140 mmH) per minute (adjustable according to panel height and operator’s experience).
Pasting thickness accuracy: < ± 0.1mm
Easily replaceable mold with longer service life.
Sulfuric acid and water rolling system provided at the rear section.
A heavy-duty bearing is used on the driving shaft of the pasting belt, and there is an oil seal on the outside to protect the bearing.
Italian made seamless belt
Product specification
Product specification
Power consumption
19 HP
Dimensions
approx. 4150 (W) × 1700 (D) × 1535 (H) mm
Weight
approx. 2850 kg
